• 1 12V DC Power Outlet
• 2 LCD Monitors In The Front
• 6 Speakers
• 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat
• Air Filtration
• Analog Appearance
• Cab Mounted Cargo Lights
• Cloth 40/20/40 Front Seat -inc: 2-way manual driver/passenger adjustment and armrest
• Compass
• Day-Night Rearview Mirror
• Delayed Accessory Power
• Driver Information Center
• Driver Seat
• Fixed Antenna
• FordPass Connect 4G Mobile Hotspot Internet Access
• Front Center Armrest
• Front Cupholder
• Front Map Lights
• Full Cloth Headliner
• Full Vinyl/Rubber Floor Covering
• HVAC -inc: Underseat Ducts
• Instrument Panel Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins
• Interior Trim -inc: Cabback Insulator and Metal-Look Interior Accents
• Lane-Keeping System -inc: lane-keeping alert, lane-keeping aid and driver alert
• Locking Glove Box
• Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints
• Manual Air Conditioning
• Manual Tilt/Telescoping Steering Column
• Mini Overhead Console w/Storage and 1 12V DC Power Outlet
• Outside Temp Gauge
• Passenger Seat
• Passenger Visor Vanity Mirror
• Perimeter Alarm
• Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down
• Power Door Locks w/Autolock Feature
• Power Rear Windows
• Pre-Collision Assist w/Automatic Emergency Braking -inc: pedestrian detection, forward collision warning and dynamic brake support
• Radio w/Seek-Scan, Clock, Speed Compensated Volume Control, Steering Wheel Controls, Voice Activation, Radio Data System and External Memory Control
• Radio: AM/FM Stereo w/6 Speakers -inc: auxiliary audio input jack
• Rear Cupholder
• Rear View Camera
• Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button
• Seats w/Cloth Back Material
• Securilock Anti-Theft Ignition (pats) Immobilizer
• Streaming Audio
• SYNC 4 -inc: 8" LCD capacitive touchscreen w/swipe capability, wireless phone connection, cloud connected, AppLink w/App catalog, 911 Assist, Apple CarPlay and Android Auto compatibility and digital owners manual
• Trip Computer
• Urethane Gear Shifter Material

• 200 Amp Alternator
• 26 Gal. Fuel Tank
• 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake
• 50 State Emissions
• 70-Amp/Hr 610CCA Maintenance-Free Battery w/Run Down Protection
• Auto Locking Hubs
• Double Wishbone Front Suspension w/Coil Springs
• Electric Power-Assist Speed-Sensing Steering
• Electronic Transfer Case
• Front Anti-Roll Bar
• HD Gas-Pressurized Shock Absorbers
• Part-Time Four-Wheel Drive
• Single Stainless Steel Exhaust
• Solid Axle Rear Suspension w/Leaf Springs
• Towing Equipment -inc: Trailer Sway Control
• Trailer Wiring Harness

• ABS And Driveline Traction Control
• Airbag Occupancy Sensor
• Back-Up Camera
• Collision Mitigation-Front
• Driver Monitoring-Alert
• Dual Stage Driver And Passenger Front Airbags
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Lane Departure Warning
• Lane Keeping Assist
• Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute
• Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners
• Rear Child Safety Locks
• Safety Canopy System Curtain 1st And 2nd Row Airbags
• Side Impact Beams
• Tire Specific Low Tire Pressure Warning

STX APPEARANCE PACKAGE

• Box Side Decals
• Molded-In Color Black Honeycomb Style Grille
• body-color surround
• SYNC 4 w/Enhanced Voice Recognition
• 8" LCD capacitive touchscreen w/swipe capability
• wireless phone connection
• cloud connected
• AppLink w/App catalog
• 911 Assist
• Apple CarPlay and Android Auto compatibility
• digital owners manual
• conversational voice command recognition and connected navigation
• Note: Navigation services require SYNC 4 and FordPass Connect (optional on select vehicles)
• complimentary connect service and the FordPass app (see FordPass Terms for details)
• Eligible vehicles receive a complimentary 90-day trial of navigation services that begins on the new vehicle warranty start date
• Customers must unlock the navigation service trial by activating the eligible vehicle w/a FordPass member account
• If not subscribed by the end of the complimentary period
• the navigation service will terminate
• Connected service and features depend on compatible AT&T network availability
• Evolving technology/cellular networks/vehicle capability may limit functionality and prevent operation of connected features
• FordPass App
• compatible w/select smartphone platforms
• is available via a download
• Message and data rates may apply
• Radio: AM/FM SiriusXM w/360L
• Rear Window Fixed Privacy Glass
• Body-Color Front & Rear Bumpers
• body-color front fascia
• Rear Window Defroster

TRANSMISSION: ELECTRONIC 10-SPEED AUTOMATIC

• selectable drive modes: normal
• ECO
• sport
• tow/haul
• slippery
• deep snow/sand and mud/rut (STD)

EQUIPMENT GROUP 101A HIGH

• Reverse Sensing System
• Cruise Control

FRONT LICENSE PLATE BRACKET

• Standard in states requiring 2 license plates
• optional to all others

• FOG LAMPS
• ELECTRONIC LOCKING W/3.31 AXLE RATIO
• STX APPEARANCE PACKAGE -inc: Box Side Decals Molded-In Color Black Honeycomb Style Grille body-color surround SYNC 4 w/Enhanced Voice Recognition 8" LCD capacitive touchscreen w/swipe capability wireless phone connection cloud connected AppLink w/App catalog 911 Assist Apple CarPlay and Android Auto compatibility digital owners manual conversational voice command recognition and connected navigation Note: Navigation services require SYNC 4 and FordPass Connect (optional on select vehicles) complimentary connect service and the FordPass app (see FordPass Terms for details) Eligible vehicles receive a complimentary 90-day trial of navigation services that begins on the new vehicle warranty start date Customers must unlock the navigation service trial by activating the eligible vehicle w/a FordPass member account If not subscribed by the end of the complimentary period the navigation service will terminate Connected service and features depend on compatible AT&T network
• TRAILER TOW PACKAGE -inc: Towing capability up to TBD lbs tailgate LED Class IV Trailer Hitch Receiver towing capability up to TBD lbs on 3.3L V6 PFDI engine (99B) and 2.7L EcoBoost engine (99P) or up to TBD lbs on 3.5L EcoBoost engine (998) and 5.0L V8 engine (995) 7/4-pin connector class IV trailer hitch receiver smart trailer tow connector ( BLIS w/trailer tow coverage where BLIS is available) Integrated Trailer Brake Controller
• AUTO START-STOP REMOVAL
• WHEELS: 20" 6-SPOKE MACHINED-ALUMINUM -inc: magnetic painted pockets Fog Lamps Driver/Passenger Seat Back Pocket Tires: 275/60R20 BSW AT 265/70R17 BSW all-terrain spare tire Manual Driver/Passenger Lumbar
• TRANSMISSION: ELECTRONIC 10-SPEED AUTOMATIC -inc: selectable drive modes: normal ECO sport tow/haul slippery deep snow/sand and mud/rut (STD)
• COLOR-COORDINATED CARPET W/CARPET FLOOR MATS (FLT)
• COLOR-COORDINATED CARPET W/CARPETED FLOOR MATS
• TIRES: 275/60R20 BSW AT -inc: 265/70R17 BSW all-terrain spare tire
• ENGINE: 5.0L V8 (STD)
• EQUIPMENT GROUP 101A HIGH -inc: Reverse Sensing System Cruise Control
• BLACK PLATFORM RUNNING BOARDS
• EXTENDED RANGE 36 GALLON FUEL TANK
• FRONT LICENSE PLATE BRACKET -inc: Standard in states requiring 2 license plates optional to all others
• Four Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Steel Wheels
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Conventional Spare Tire
• Tow Hooks
• Power Mirror(s)
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Daytime Running Lights
• Automatic Headlights
• Automatic Highbeams
• AM/FM Stereo
• Cloth Seats
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• WiFi Hotspot
• Keyless Entry
• A/C
• Passenger Vanity Mirror
• Bluetooth® Connection
• Telematics
• Immobilizer
• Security System
• Stability Control
• Front Side Air Bag
• Tire Pressure Monitor
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Driver Restriction Features
• Front Head Air Bag
• Rear Head Air Bag
• Child Safety Locks

• Mileage
• Fuel Economy Est-Combined (MPG): 18
• Fuel Economy Est-Combined (MPG): 19
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - City (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 610
• Cold Cranking Amps @ 0° F (2nd): 610
• Maximum Alternator Capacity (amps): 200
• Weight Information
• Base Curb Weight (lbs): 4705
• Gross Axle Wt Rating - Front (lbs): 3450
• Gross Axle Wt Rating - Rear (lbs): 3400
• Curb Weight - Front (lbs): 2809
• Curb Weight - Rear (lbs): 1896
• Gross Vehicle Weight Rating Cap (lbs): 6470
• Gross Combined Wt Rating (lbs): 14800
• Gross Combined Wt Rating (lbs): 13300
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9400
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 940
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 820
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9400
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2350
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2050
• Maximum Trailering Capacity (lbs): 9400
• Maximum Trailering Capacity (lbs): 8200
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 3450
• Spring Capacity - Rear (lbs): 3400
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 4800
• Axle Ratio (:1) - Front: 3.31
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.31
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8
• Rear Brake Rotor Diam x Thickness (in): 13.2
• Tires
• Front Tire Order Code: T2P
• Rear Tire Order Code: T2P
• Spare Tire Order Code: T2P
• Front Tire Size: P275/60SR20
• Front Tire Size: P265/70SR17
• Rear Tire Size: P275/60SR20
• Rear Tire Size: P265/70SR17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 4050
• Rear Tire Capacity (lbs): 4498
• Wheels
• Front Wheel Size (in): 17 X 7.5
• Rear Wheel Size (in): 17 X 7.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 47.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Capacity, Approx (gal): 26
• Exterior Dimensions
• Wheelbase (in): 145
• Length, Overall (in): 231.7
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 77.2
• Overhang, Front (in): 37.6
• Ground to Top of Load Floor (in): 34.9
• Ground Clearance, Front (in): 9.4
• Ground Clearance, Rear (in): 9.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 66
• Cargo Box Width @ Top, Rear (in): 65.2
• Cargo Box Width @ Floor (in): 65.2
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 52.8
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 66
• Second Hip Room (in): 62.6
• Summary

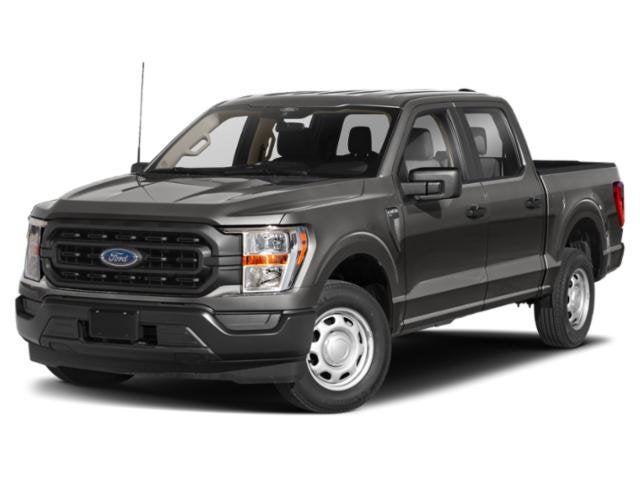

• Vehicle Name: Ford F-150
• Body Style: SuperCrew Cab
• Body Code: T
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.3
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.8
