• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Seat trim, Vinyl
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• Steering column, manual Tilt-Wheel
• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors (Requires single rear wheels.)
• Chassis, single rear wheel
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating ball with smart flow power steering system
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Trailer brake controller, integrated (If (ZW9) pickup box delete or (9J4) rear bumper delete is ordered (JL1) trailer brake controller is deleted and available to order as a free flow option.)
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps (Deleted when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Transfer case, with floor-mounted shifter (Included with 4WD models only.)

• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete
• Rear Vision Camera (Not included when (ZW9) pickup box delete is ordered.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Teen Driver configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH SCREEN WITH GMC INFOTAINMENT SYSTEM, AM/FM

• with USB ports
• auxiliary jack
• Bluetooth® streaming audio for music and most phones
• Pandora Internet radio and voice command pass-through to phone.

GOOSENECK / 5TH WHEEL PREP PACKAGE -- HITCH PLATFORM TO ACCEPT GOOSENECK OR FIFTH WHEEL HITCH.

• Includes Hitch platform with tray to accept ball and drilled box holes with caps installed
• box mounted 7-pin trailer harness (similar to (UY2) harness).

GMC 4G LTE AND AVAILABLE BUILT-IN WI-FI HOTSPOT OFFERS A FAST AND RELIABLE INTERNET CONNECTION FOR UP TO 7 DEVICES;

• includes data trial for 1 month or 3GB (whichever comes first)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

BRAKES, 4-WHEEL ANTILOCK, 4-WHEEL DISC

• with DuraLife brake rotors

BED LINER, SPRAY-ON

• Pickup box bed liner with GMC logo consisting of high pressure
• chemically bonded
• sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. The textured
• non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails
• including tailgate
• front box top rail
• gage hole plugs and lower tie down loops.

WHEEL, 17" X 6.5" (43.2 CM X 16.5 CM) FULL-SIZE, STEEL SPARE.

• Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.

SIRIUSXM RADIO

• Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music
• plus sports
• news and entertainment. Plus listening on the app and online is included
• so you'll hear the best SiriusXM has to offer
• anywhere life takes you. Welcome to the world of SiriusXM.

PICKUP BOX

• (STD)

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• electronic engine grade braking and tow/haul mode.

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an instrument panel mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• (445 hp [332 kW] @ 2800 rpm
• 910 lb-ft of torque [1220 Nm] @ 1600 rpm) Includes capped fuel fill
• (K40) exhaust brake and (K05) engine block heater.)

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER RECLINE

• with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

WHEELS, 17" (43.2 CM) PAINTED STEEL

• includes 17" steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.

LICENSE PLATE KIT, FRONT

• Note: (VK3) deletes center lower bumper filler panel.

• AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH SCREEN WITH GMC INFOTAINMENT SYSTEM AM/FM with USB ports auxiliary jack Bluetooth® streaming audio for music and most phones Pandora Internet radio and voice command pass-through to phone.
• EBONY TWILIGHT METALLIC
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
• AIRBAGS SINGLE-STAGE FRONTAL AIRBAGS FOR DRIVER AND FRONT OUTBOARD PASSENGER; SEAT-MOUNTED SIDE IMPACT AIRBAGS FOR DRIVER AND FRONT OUTBOARD PASSENGER; HEAD-CURTAIN AIRBAGS FOR FRONT AND REAR OUTBOARD SEATING POSITIONS
• GLASS DEEP-TINTED
• DEFOGGER REAR-WINDOW ELECTRIC
• GOOSENECK / 5TH WHEEL PREP PACKAGE -- HITCH PLATFORM TO ACCEPT GOOSENECK OR FIFTH WHEEL HITCH. Includes Hitch platform with tray to accept ball and drilled box holes with caps installed box mounted 7-pin trailer harness (similar to (UY2) harness).
• SIERRA CONVENIENCE PACKAGE includes (DPN) outside heated power-adjustable vertical camper mirrors (AQQ) Remote Keyless Entry (A91) remote locking tailgate (KI4) 110-volt AC power outlet (UF2) LED cargo box lighting and (AKO) deep tinted glass.
• LPO ASSIST STEPS CHROMED TUBULAR 6" RECTANGULAR
• ENGINE BLOCK HEATER
• ALTERNATORS DUAL 150 AMPS AND 220 AMPS EACH
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 3.73 RATIO
• WHEEL TRIM PAINTED CENTER CAPS
• LPO HITCH PACKAGE GOOSENECK BALL AND CHAIN TIEDOWN KIT WITH CASE
• POWER OUTLET 110-VOLT AC
• FLOOR MATS RUBBERIZED-VINYL FRONT
• REMOTE KEYLESS ENTRY
• FLOOR COVERING COLOR-KEYED CARPETING
• SWITCH HIGH IDLE
• GMC 4G LTE AND AVAILABLE BUILT-IN WI-FI HOTSPOT OFFERS A FAST AND RELIABLE INTERNET CONNECTION FOR UP TO 7 DEVICES; includes data trial for 1 month or 3GB (whichever comes first)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK; includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp Includes (DD8) auto-dimming inside rearview mirror.)
• FLOOR MATS RUBBERIZED-VINYL REAR
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• TIRES LT235/80R17E ALL-TERRAIN
• BRAKES 4-WHEEL ANTILOCK 4-WHEEL DISC with DuraLife brake rotors
• BED LINER SPRAY-ON Pickup box bed liner with GMC logo consisting of high pressure chemically bonded sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. The textured non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails including tailgate front box top rail gage hole plugs and lower tie down loops.
• REMOTE LOCKING TAILGATE
• WHEEL 17" X 6.5" (43.2 CM X 16.5 CM) FULL-SIZE STEEL SPARE. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• SIRIUSXM RADIO Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music plus sports news and entertainment. Plus listening on the app and online is included so you'll hear the best SiriusXM has to offer anywhere life takes you. Welcome to the world of SiriusXM.
• PICKUP BOX (STD)
• LED LIGHTING CARGO BOX with switch on center switch bank
• PAINT SOLID
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode.
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an instrument panel mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• TIRE SPARE LT235/80R17E ALL-TERRAIN
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE (445 hp [332 kW] @ 2800 rpm 910 lb-ft of torque [1220 Nm] @ 1600 rpm) Includes capped fuel fill (K40) exhaust brake and (K05) engine block heater.)
• LAMPS SMOKED AMBER ROOF MARKER
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• GVWR 13 025 LBS. (5908 KG) WITH DUAL REAR WHEELS
• WHEELS 17" (43.2 CM) PAINTED STEEL includes 17" steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• LICENSE PLATE KIT FRONT Note: (VK3) deletes center lower bumper filler panel.
• EXHAUST BRAKE
• ONSTAR AND GMC CONNECTED SERVICES CAPABLE
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• HID headlights
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Bluetooth® Connection
• Split Bench Seat
• Driver Adjustable Lumbar
• Vinyl Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Back-Up Camera
• Driver Restriction Features

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.22
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 76.3
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150 & 220
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 55.24
• Front Bumper to Back of Cab (in): 151.1
• Ground Clearance, Rear (in): 8.27
• Ground to Top of Load Floor (in): 38.86
• Height, Overall (in): 77.76
• Length, Overall (in): 258.4
• Wheelbase (in): 167.7
• Width, Max w/o mirrors (in): 95.98
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Interior Dimensions
• Front Head Room (in): 42.8
• Front Hip Room (in): 60.73
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Passenger Capacity: 6
• Second Head Room (in): 40.5
• Second Hip Room (in): 60.24
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Steering
• Steering Ratio (:1), At Lock: N/A
• Steering Ratio (:1), On Center: 16.00
• Steering Type: Pwr Recirculating Ball
• Turning Diameter - Curb to Curb (ft): 55.7
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: E63
• Body Style: Crew Cab Pickup

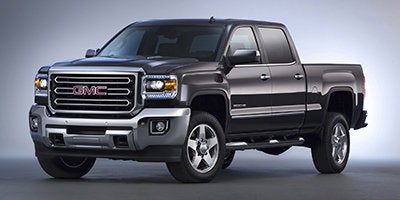

• Vehicle Name: GMC Sierra 3500HD
• Suspension
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9750
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 9750
• Stabilizer Bar Diameter - Front (in): 1.31
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 4800
• Front Tire Order Code: QZT
• Front Tire Size: LT235/80R17E
• Rear Tire Capacity (lbs): 9375
• Rear Tire Order Code: QZT
• Rear Tire Size: LT235/80R17E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZZT
• Spare Tire Size: LT235/80R17E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5675
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17000
• Maximum Trailering Capacity (lbs): 20000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1340
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 15000
• Weight Information
• Curb Weight - Front (lbs): 3919
• Curb Weight - Rear (lbs): 3129
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 9375
• Gross Combined Wt Rating (lbs): 31300
• Gross Vehicle Weight Rating Cap (lbs): 13025
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x 6.5
